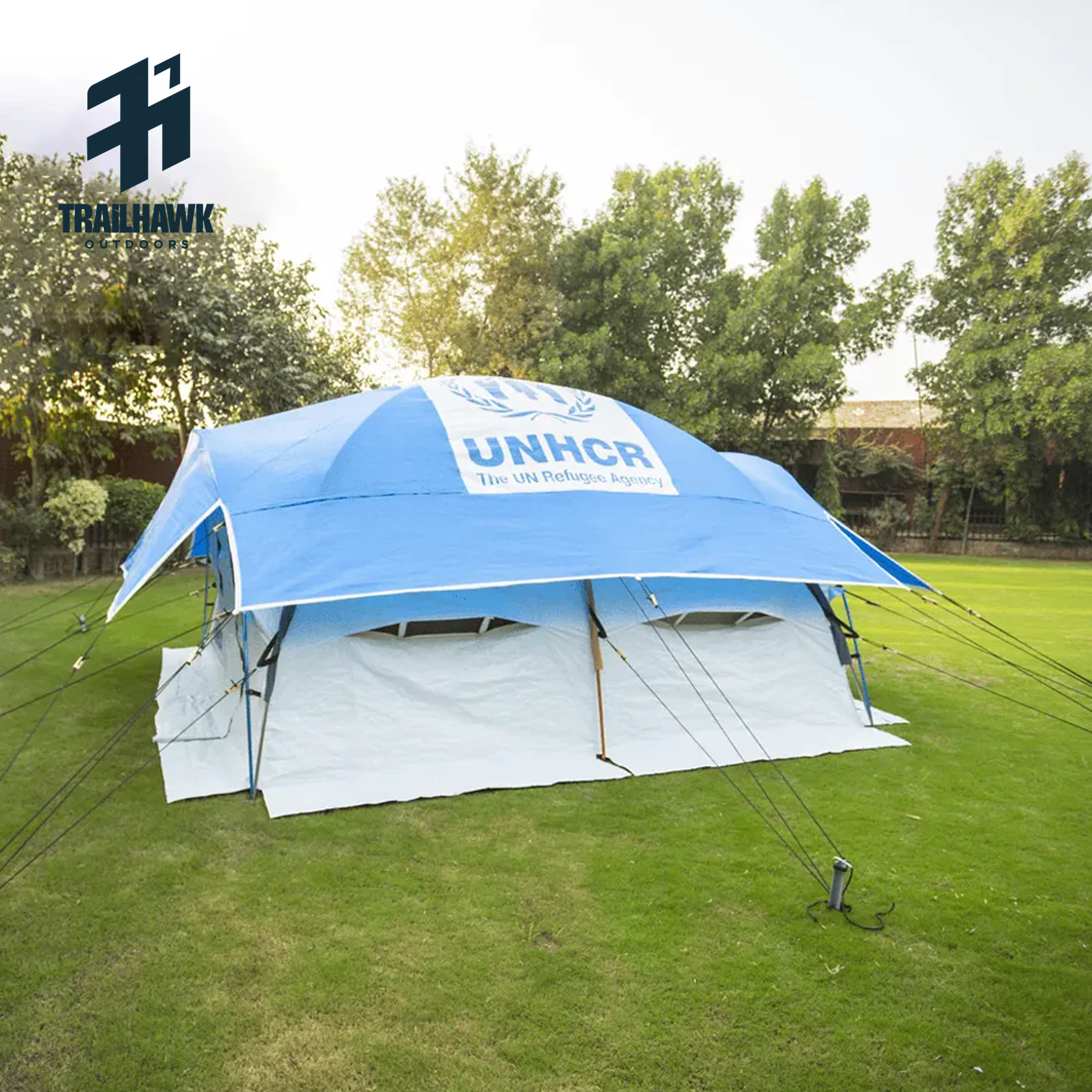

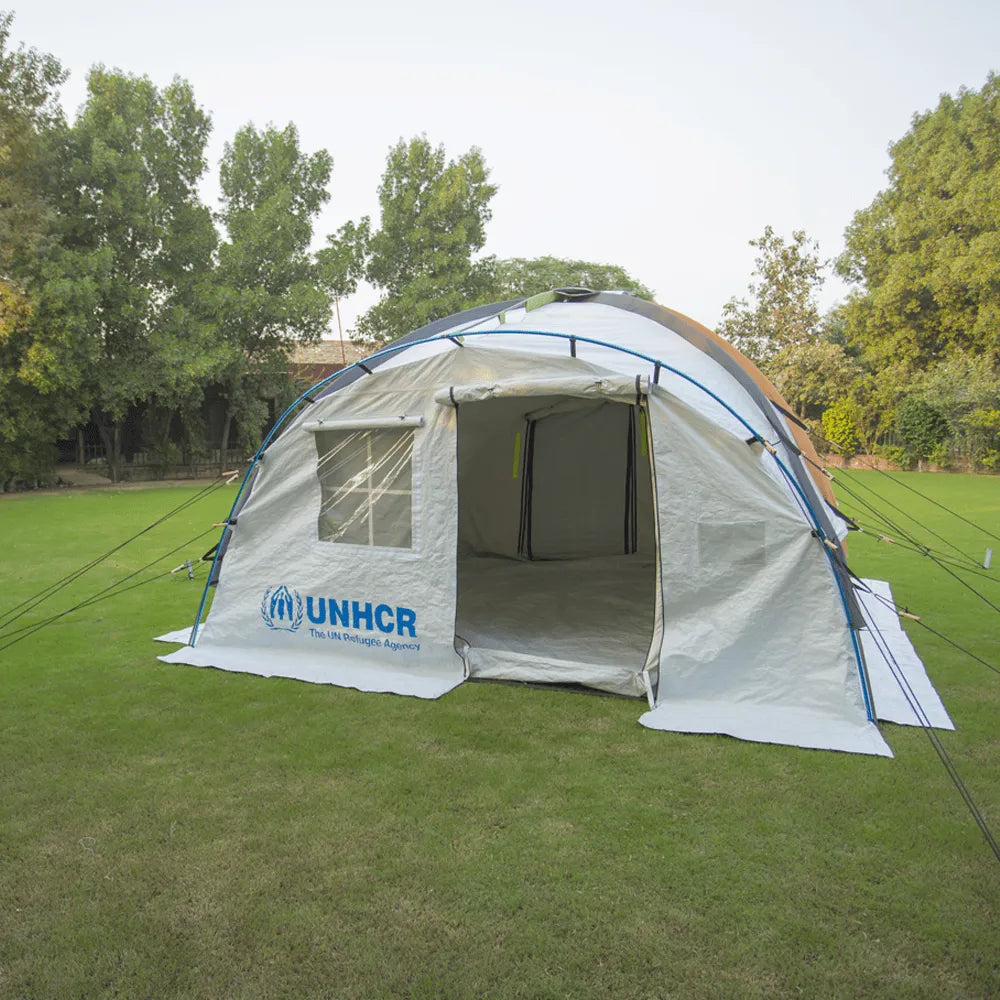

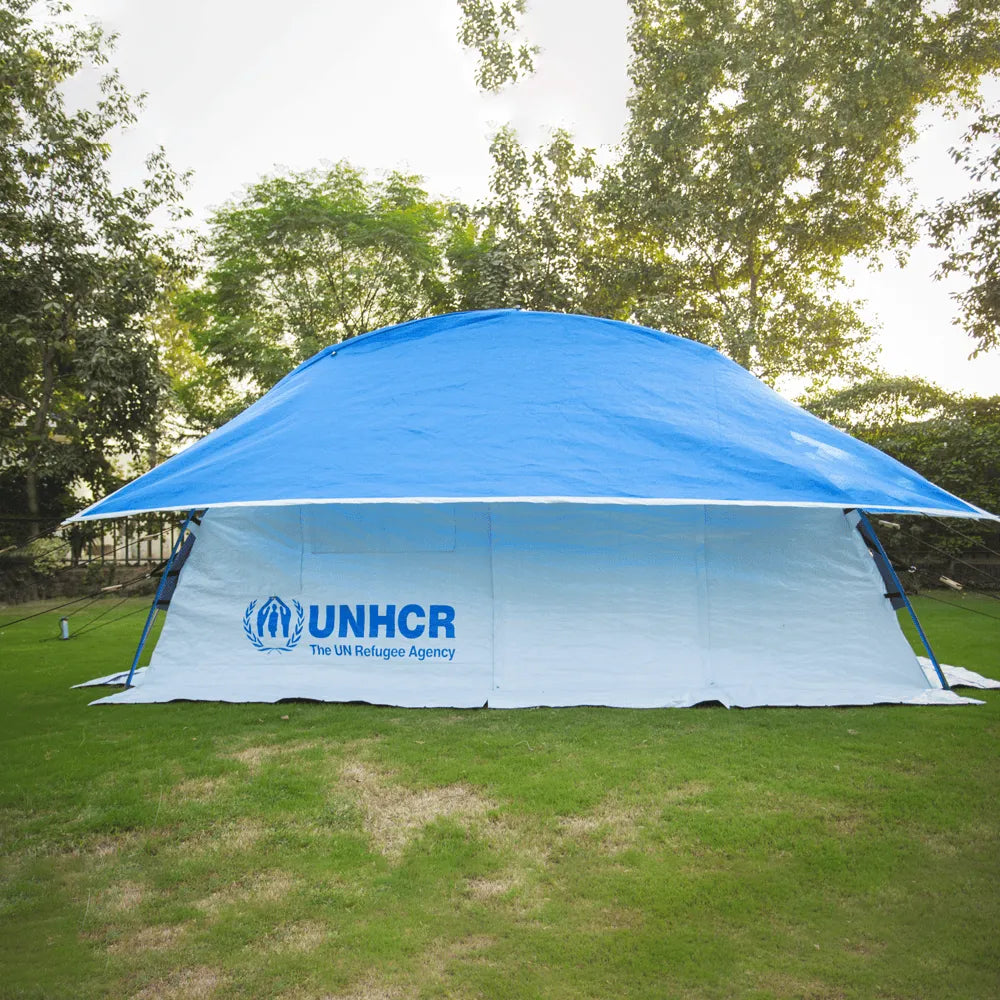

SELF STANDING TENT

UNHCR STANDARD



  • Easy setup (requires 3 individuals to setup)
  • Made of PE fabric making it lightweight and strong
  • Adaptable to all climates, advanced ventilation
  • 3 Layers: Outer tent, pre fitted inner tent and shade net

SUITABLE FOR A FAMILY OF 5

  • Total Living Area 18.5 m2
  • Length 4.30 m
  • Width 4.30 m
  • Centre Height  2.40 m
  • Entrance Wall Height  1.90 m
  • Door Height  1.70 m
  • Windows  2 (0.75 x 0.70 m)
  • Ventilation  4 adjustable ventilation windows on side walls & 4 adjustable ventilation grades on roof top
  • MAIN TENT (Roof, Walls, Mudflaps, Ground Sheet and Shade net Reinforcement Strips)
  • Composition   Woven high-density polyethylene black fibre farbic laminated on both sides with low-density polyethylene coating
  • Fire Retardancy Weight  EN 13823, +A1 and CPAI84 190 ±(10%) g/m2
  • INNER TENT (Doors, Window shutters, Ventilation shutters, Partition)
  • Composition Polyester/cotton blended fibre yarns.Cotton: 40% (±10%), polyester: 60% (±10%) = polyester: 50% to 70%, balance cotton or cotton 100%
  • Fire Retardancy CPAI84
  • Weight 150 gsm (±15%)
  • TENT FRAMES & ACCESSORIES Aluminum 7001-T6, 19 mm outer diameter, 1.2 mm wall thickness, colour coded anodized
  • Pegs 14 J-Type – 30 cm6 T-Type – 40 cm
  • Hammer 1

Each complete in a PE bag
