1- INSULATING FLOOR MATS
Length: 1.80 m
Width: 0.90 m

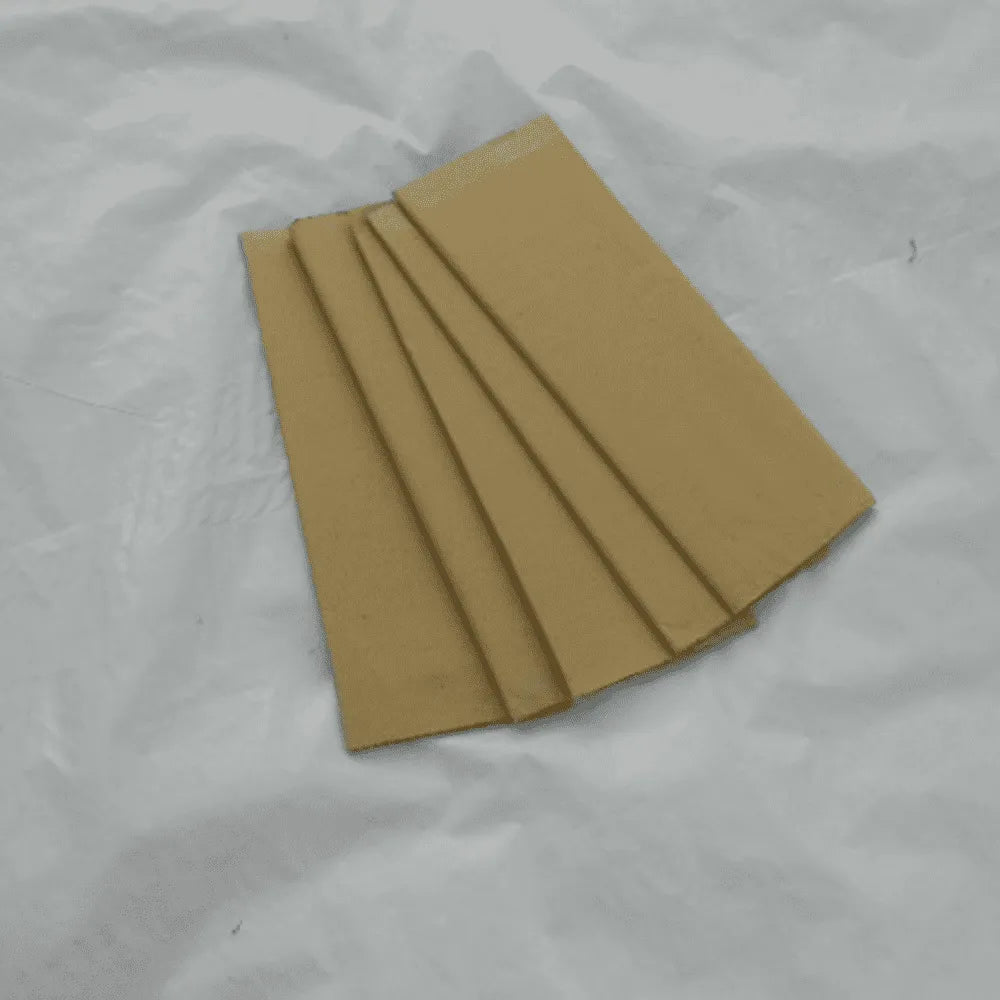

2- HEAT RESISTANT FLOOR PROTECTION SHEET
- Can be used in any tent to protect the groundsheet when
using a stove or heater
Fibrocement plates, 100% Fire proof and rigid material
Size: 0.5 x 1.0 m
Thickness: 0.40 m
Quantity: 4-6 Plates
3- INNER LINING AND PARTITION
Length: 3.80 m
Width: 3.80 m
Centre Height: 2.30 m
Wall Height: 1.35 m
4- HEATER FLUE PIPE SLEEVE
Base Size: 0.35 x 0.70 m
Height: 0.40 m
Hole Diameter: 0.15 m

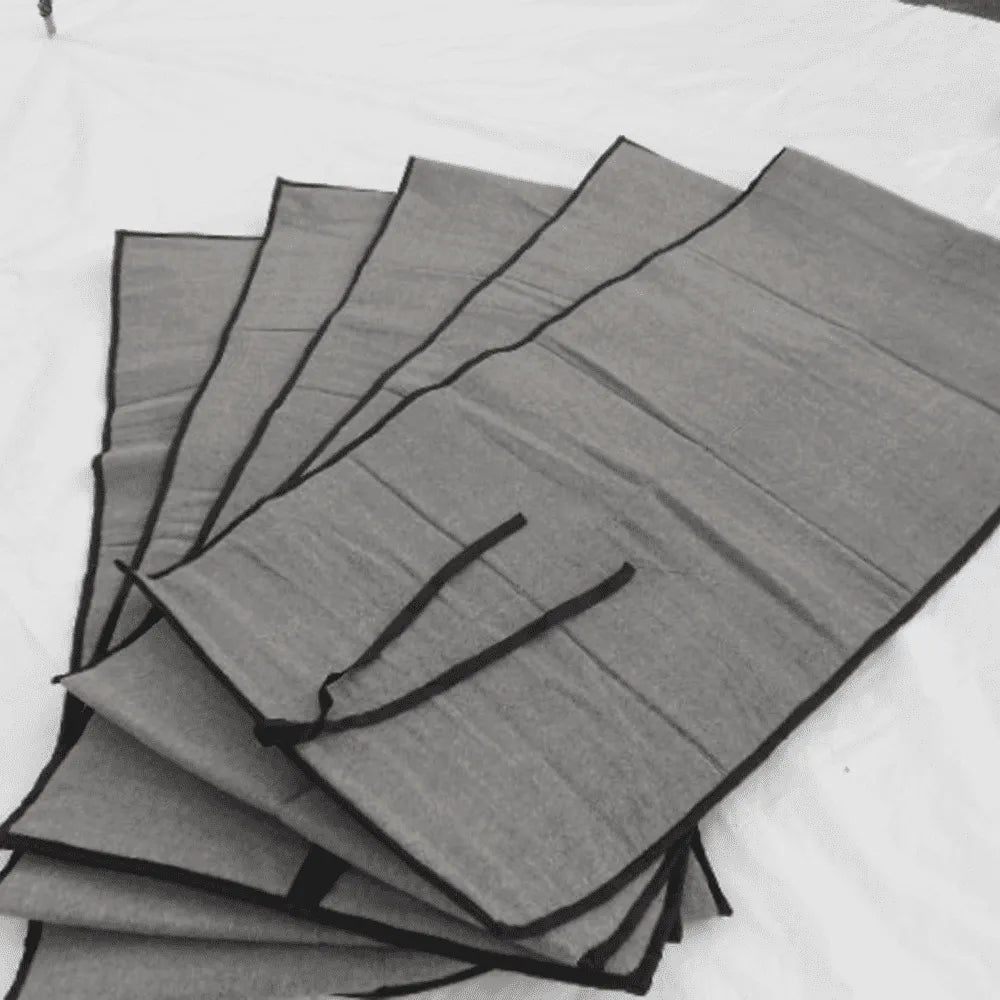

INSULATING FLOOR MATS
1ST Layer –Plastic Mat: 500 gsm virgin poly-propylene (PP) multifilament, 500 denier in warp PP, hollow tube in weft. Made in tightly woven twill structure, with minimum 1,000 tubes/meter length. With heavy-duty ribbon, strongly stitched around the entire perimeter
2ND Layer –AluminizedCanvas: Aluminized Canvas: Strong synthetic canvas with durable aluminum coating, soft and noiseless
3RD Layer –Fleece Blanket: Fleece Blanket: Medium thermal blanket. ISO 12952 -: Resistance to cigarette. No ignition ISO 12952 -: Resistance to flame. No ignition

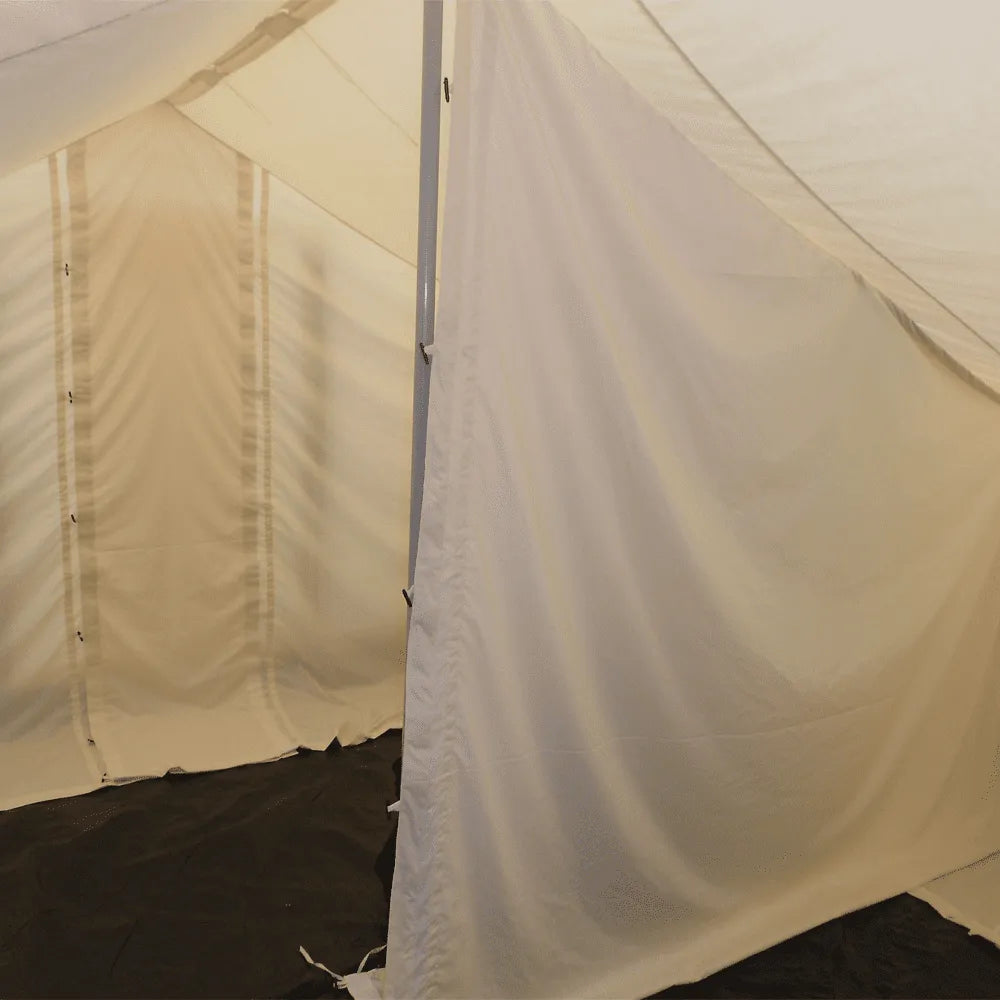

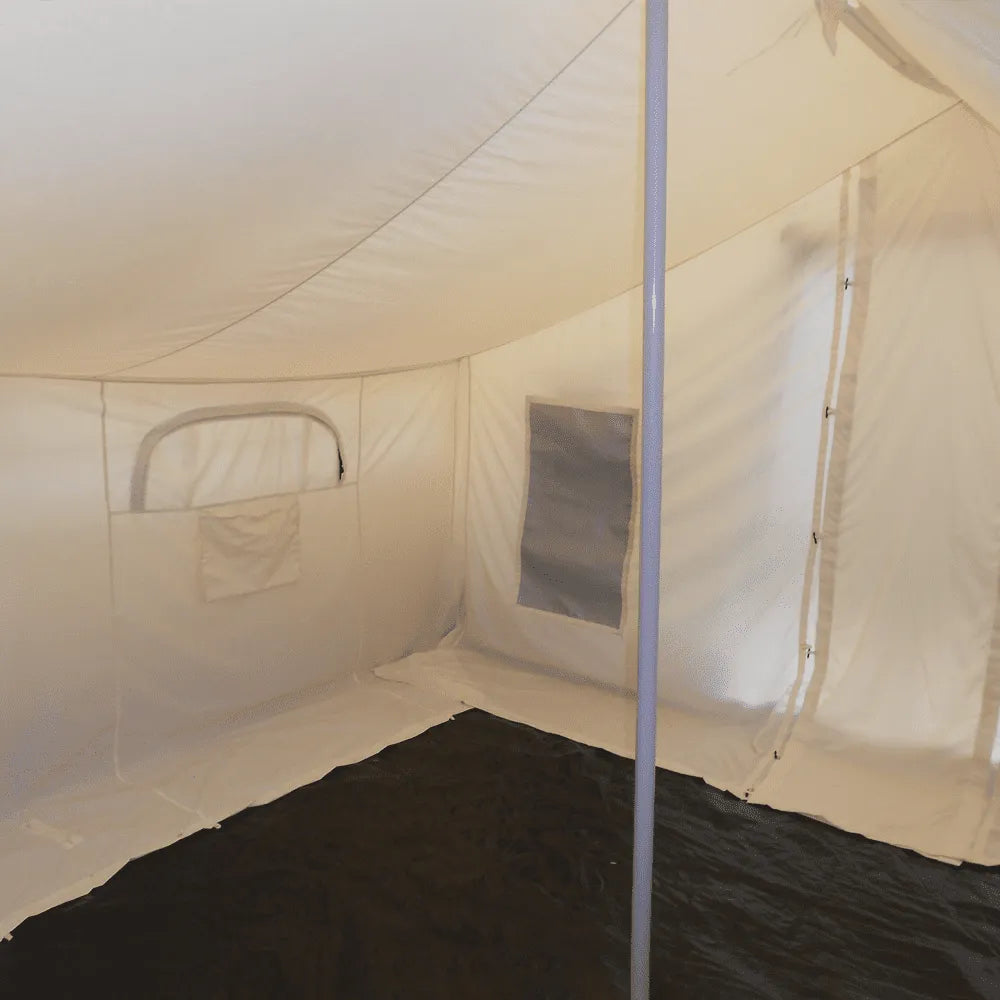

INNER LINING AND PARTITION
Composition: Made of breathable, Water, Rot proof, UV and Fire Retardant Canvas
Tensile Strength: ISO13934-1, warp and weft 300N minimum
Tear Strength: ISO9073-4, warp and weft 20N minimum
Weight: 130 Gsm (±10%), Weight will increase in case of FR treatment

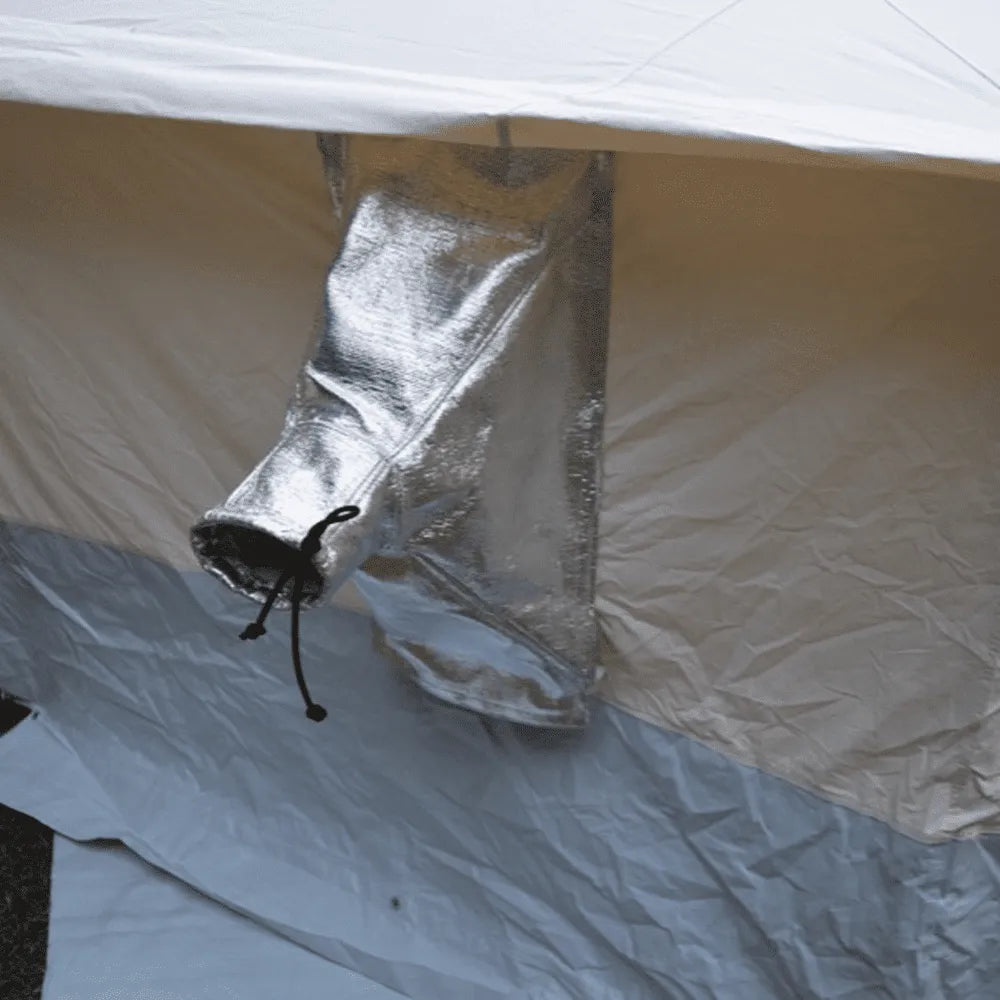

HEATER FLUE PIPE SLEEVE
Design: Pyramid base has Velcro grip to the Velcro of the tent chimney outer flap• 100% Fireproof, Tear-proof, Waterproof Soft canvas• Tear resistance under ISO9073-4: minimum 40N• Waterproof under ISO811: minimum 20HPA (20cm)
