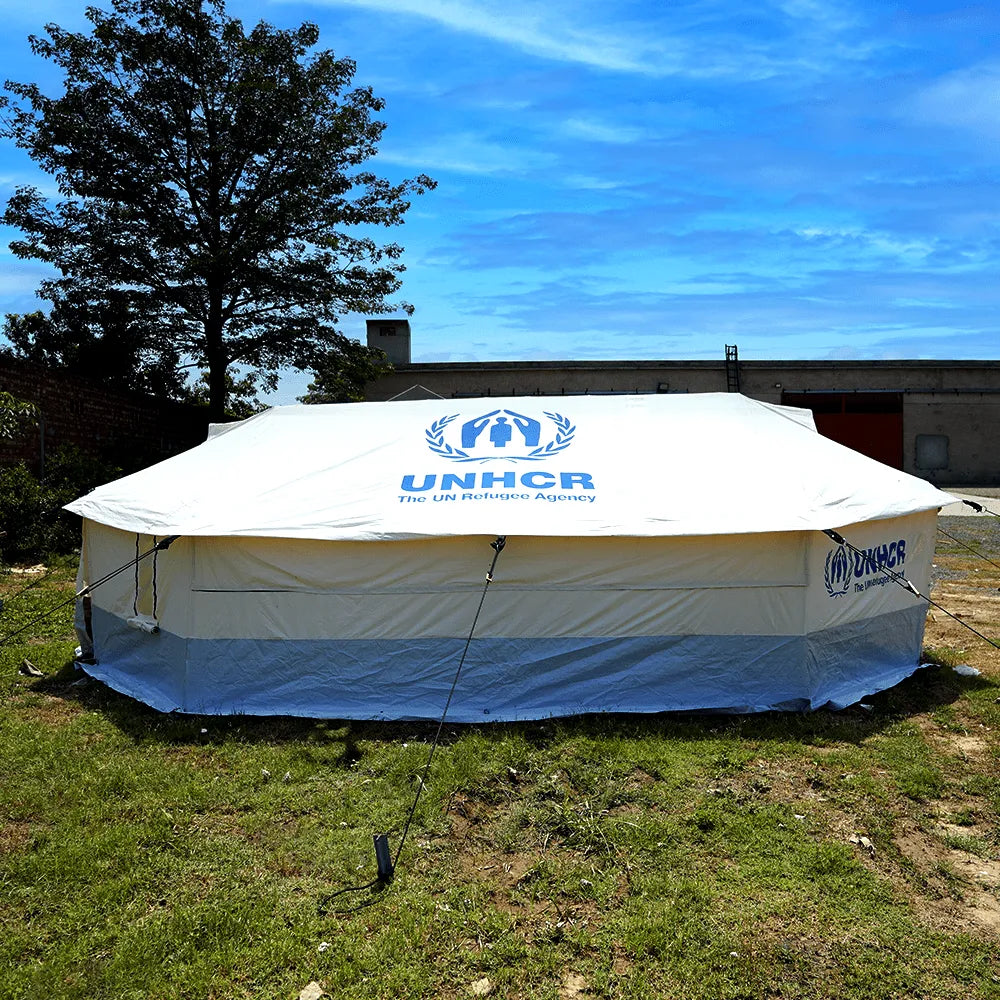

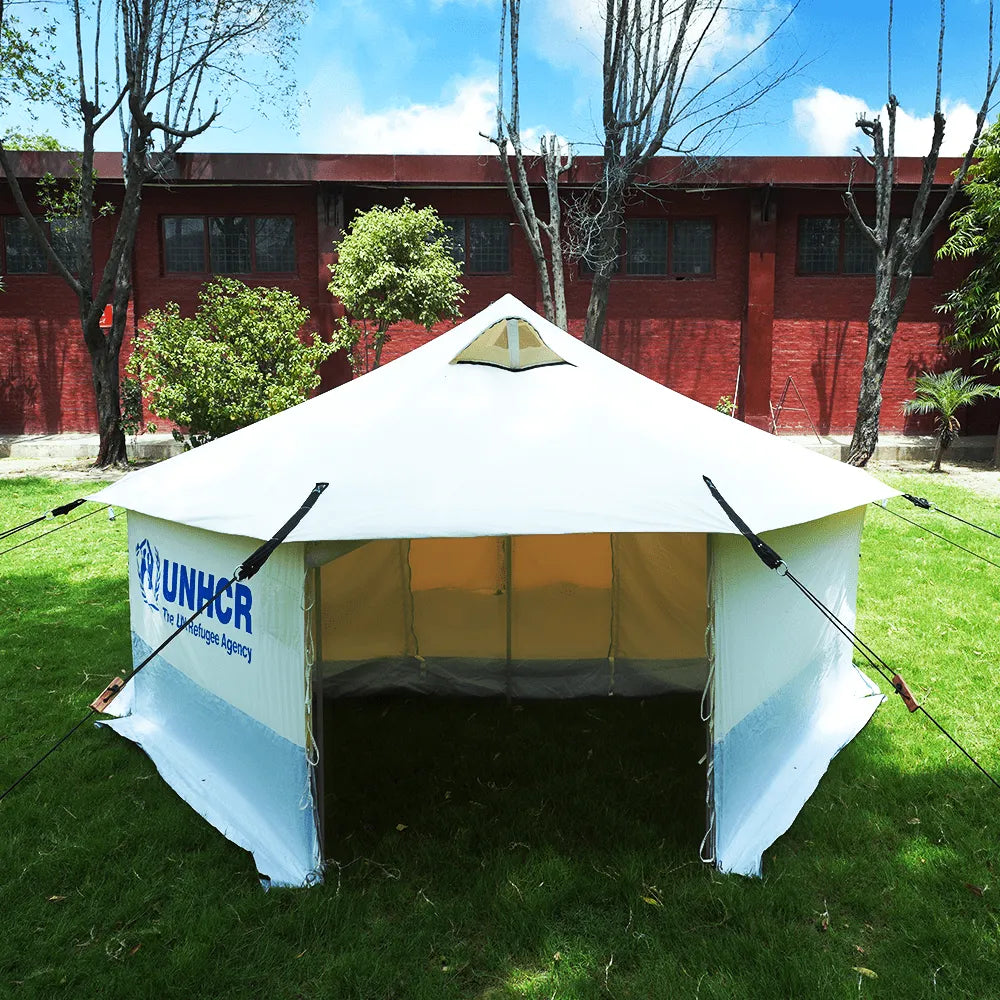

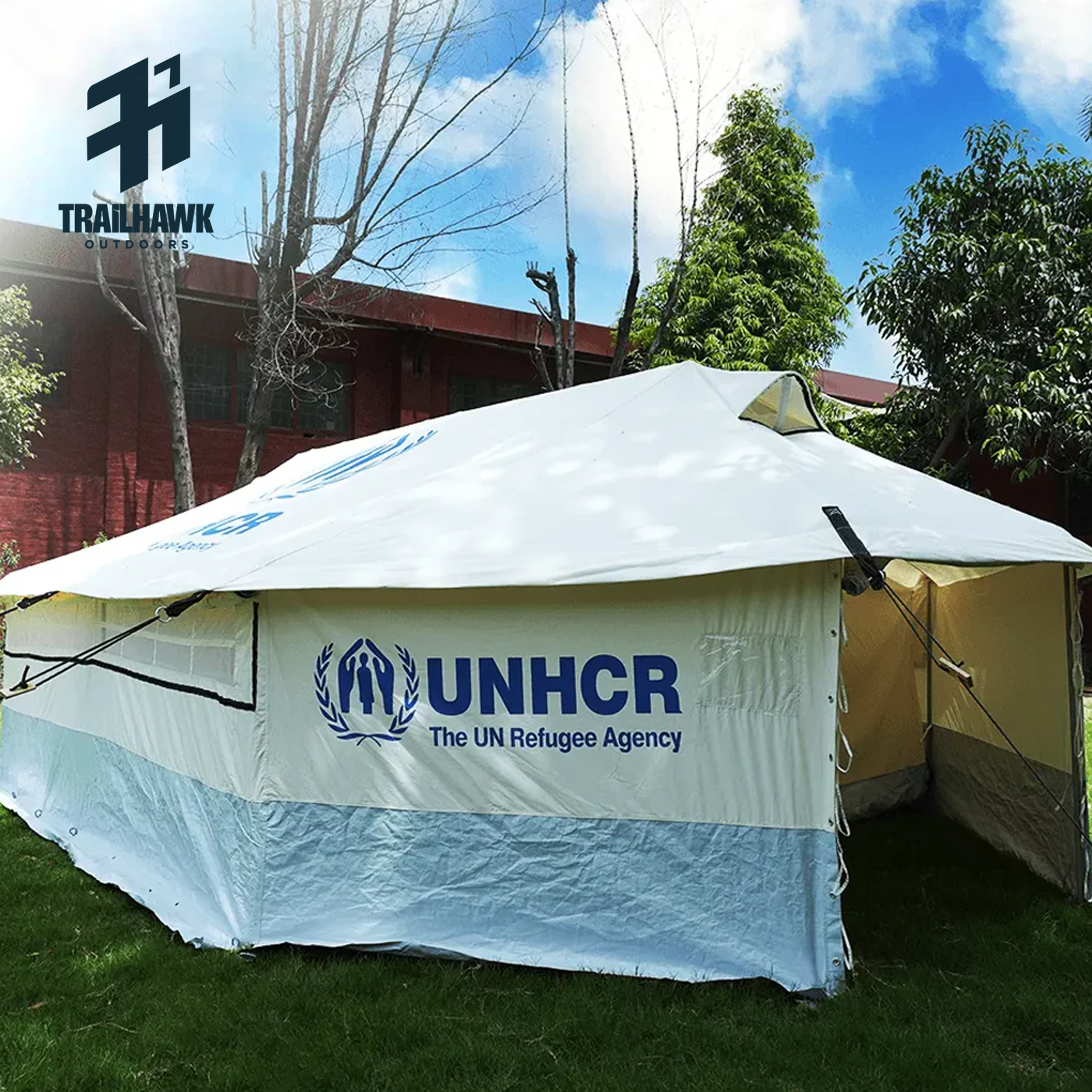

Family Tent

UNHCR STANDARD



SUITABLE FOR A FAMILY OF 5

*Based on minimum living area in hot & temperature climates
(3.5m2 per person), providing extra space for cold climates.

  • Total Living Area 23 m2
  • Main Floor 16 m2
  • Two Vestibule Area 3.5 m2 x 2= 7 m2
  • Centre Height 2.20 m
  • Centre Width 4.00 m
  • Ridge Length 4.00 m
  • Side Wall Height 1.25 m
  • Centre Base Length 6.60 m
  • Windows 2 (3.6 x 0.30 m)
  • Ventilation 2 (0.25 x 0.30 m)
  • OUTER TENT Roof 350 gsm Polycotton, natural white (±15%) – Fire Retardant, UV, Rot and Water Resistant
  • Sidewall 275 gsm Polycotton, natural white (±10%) – Fire Retardant, UV, Rot and Water Resistant
  • INNER TENT 160 gsm Polycotton, Natural White (±10%) – Fire Retardant, UV and Rot Resistant
  • MUDFLAPS 190 gsm Polyethylene (HDPE) (±30 grams)
  • GROUND SHEET 190 gsm Polyethylene (HDPE), sewn in bathtub style (±30 grams)

Each complete in a PE bag
